Product Description

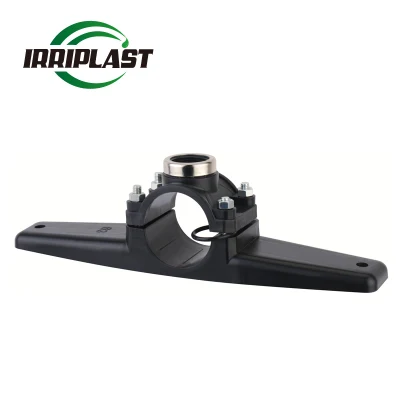

50-100MM PN16 Farm Irrigation Systems ISO9001 Irriplast Brand New Style HDPE Female Saddle Base
The clamp saddle line has been produced from high quality raw material and it has resistance to impact. It has been designed of side outputs on Polyethelene pipes(PE) and it is available in the following range of sizes: Item 4001/4002/4003/4004 with single or double output. They have diameters for the coupling with 20mm to 315mm pipes and threaded outputs(1/2 to 2), provided with 2 and 4 bolts according to the diameters.
Technical data
| Parts | Material |
| Body and cover (A) | Black mastered polypropylene copolymer, with a high level of stabilization to UV |
| Gasket (B) | Acrilonitrile elastomeric Rubber(NBR) |
| Reinforcing ring (C) | Metal ring for female threaded from 1/2'' to 2'' |
| Bolts (D) | Chromiun-plated galvanized steel screws and nuts |
| Description | Code | Size | Weight (g/pc) | PCS/BAG | PCS/CTN | Bolt&Nuts Number | Carton size |
| Female saddle base | 4012 | 50*1/2 | 149 | / | 50 | 4 | 48*38*38cm |
| 50*3/4 | 146 | / | 50 | 4 | 48*38*38cm | ||
| 50*1 | 160 | / | 50 | 4 | 48*38*38cm | ||
| 50*11/4 | 162 | / | 50 | 4 | 48*38*38cm | ||
| 63*1/2 | 165 | / | 45 | 4 | 48*38*38cm | ||
| 63*3/4 | 163 | / | 45 | 4 | 48*38*38cm | ||
| 63*1 | 171 | / | 45 | 4 | 48*38*38cm | ||
| 75*1/2 | 226 | / | 36 | 4 | 48*38*38cm | ||
| 75*3/4 | 222 | / | 36 | 4 | 48*38*38cm | ||
| 75*1 | 226 | / | 36 | 4 | 48*38*38cm | ||
| 90*1/2 | 267 | / | 30 | 4 | 48*38*38cm | ||
| 90*3/4 | 260 | / | 30 | 4 | 48*38*38cm | ||
| 90*1 | 271 | / | 30 | 4 | 48*38*38cm | ||
| 110*1/2 | 342 | / | 20 | 4 | 48*38*38cm | ||
| 110*3/4 | 336 | / | 20 | 4 | 48*38*38cm | ||
| 110*1 | 347 | / | 20 | 4 | 48*38*38cm |
The clamp saddle line is fit for conveying food fluids because its materials are conform to the national and international standard in force.
Working pressure
The clamp saddle line allows a maximum working pressure from 4 to 16 bar, at temperature of 20 ºC.
Pipes: UNI7990, DIN8074, UNI EN12201
Threads: UNI ISO7/1, UNI ISO228/1, ANSI ASME B1-20.1
International standard: ISO 13460
Application
1. Structure Engineering
2. Water supply system
3. for Agriculture Irrigation
| PPR Pipe | PPR Fitting |
| PP Union Ball Valve | PP Compression Fitting |
| Clamp Saddle | Solenoid Valve |
Sprinkler | PVC Ball Valves |
