Product Description
Introduction of automatic irrigation sprinklers system
JP series reel sprinkler irrigation machine is a self-propelled machine driven by a water turbine. Water enters the water turbine through pressure and uses the kinetic energy of the water to drive the water turbine to rotate. The rotation of the water turbine drives the winch to rotate through the multi-function gearbox, and the PE pipe is dragged to realize the sprinkler car goes back evenly. At the same time, the water enters the PE pipe and is transferred to the sprinkler to realize the normal spraying of the sprinkler.

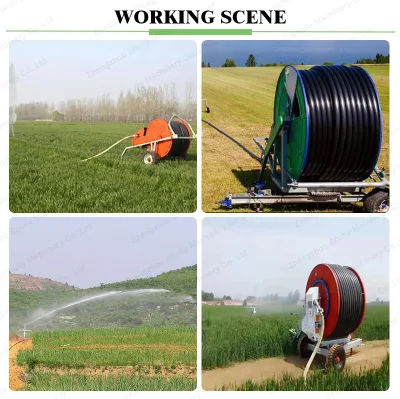

Application Crops and Scope
1. The sprinkler irrigation machine is widely used in the spraying operations of cotton, wheat, rice, tobacco, peanuts, sugarcane, hemp, fruits, vegetables, tea, pasture, and other crops in plains and hilly areas.
2. It can also be used for dust removal in urban green spaces, power plants, and docks.
3. The sprinkler irrigation machine is ideal for water-saving irrigation equipment.
Main Components of automatic irrigation sprinklers system

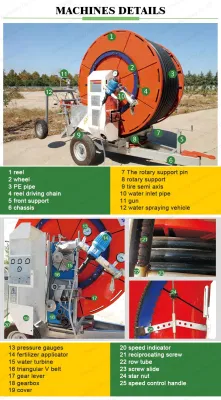

It is mainly composed of a chassis, frame, winch, PE water pipe, automatic speed control device, water turbine drive device, gearbox, sprinkler car, guide device, safety device, etc.
Parameters of automatic irrigation sprinklers system
Model | JP40 | JP50 | JP65 | JP75 | JP90 | JP100 |
Pipe Diameter(mm) | 40 | 50 | 65 | 75 | 90 | 100 |
Irrigation Distance(m) | 100-180 | 100-180 | 200-400 | 200-400 | 200-400 | 200-400 |
Sprinkling Width(m) | 30-45 | 30-45 | 47-90 | 47-90 | 47-90 | 47-90 |
Pressure(Mpa) | 0.35-0.70 | 0.35-0.70 | 0.4-1.0 | 0.4-1.0 | 0.4-1.0 | 0.4-1.0 |
Service Life(year) | 15 | 15 | 15 | 15 | 15 | 15 |
Advantages of automatic irrigation sprinklers system
1. The JP series reel sprinkler irrigation machine has the advantages of convenient movement, simple operation, labor-saving, time-saving, fertilizer saving, water saving, long spray gun range, uniform spraying, automatic recycling of equipment, safety, and reliability.
2. JP series reel sprinklers have a low impact on crops and soil and are less affected by wind. It can effectively provide the required water and improve crop quality.
3. Low operating and maintenance costs.
Zhengzhou Shuliy Machinery Co., Ltd. We not only provide customers with good quality and cost-effective products but also provides first-class service support and solutions. Our agricultural machinery has always been very popular in Africa, South East Asia, and the North American market and has won wide praise from customers. A perfect after-sales service system allows you to worry-free.
