Basic Info.
Model NO.
JFSP-RL300
Sprinkler Type
Popup
Box Size
500mm*320mm*300mm
One Box Weight
11.57kg
Product Height
4.5cm/10cm/15cm/22.5cm/41cm
Pop-up Height
5cm/10cm/15cm/30cm
Transport Package
Box
Specification
100pieces/box
Trademark
CERES/OEM
Origin
China
Production Capacity
6000pieces/Day
Packaging & Delivery
Package Size
50.00cm * 32.00cm * 30.00cm
Package Gross Weight
11.570kg
Product Description

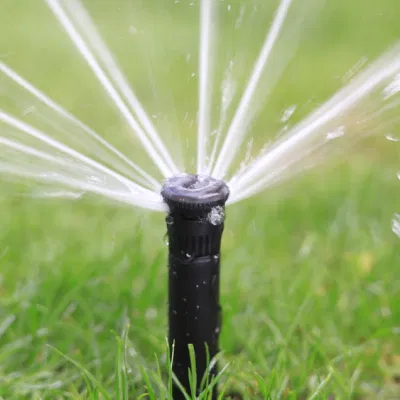

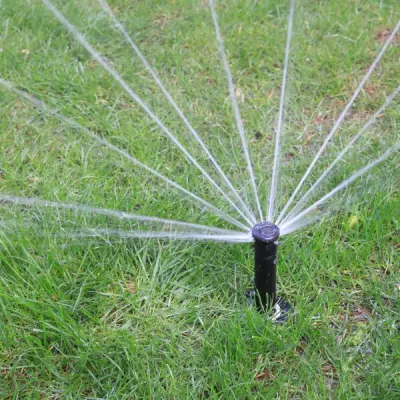

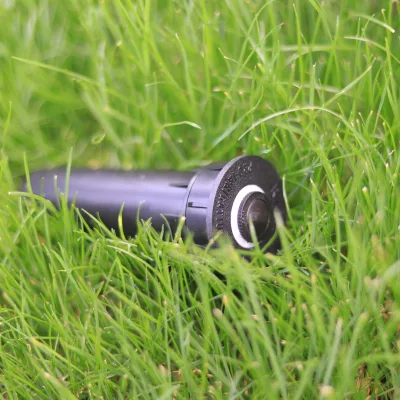

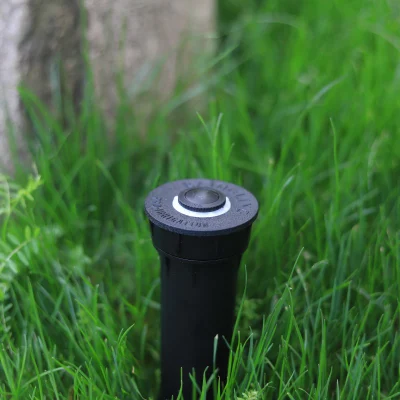

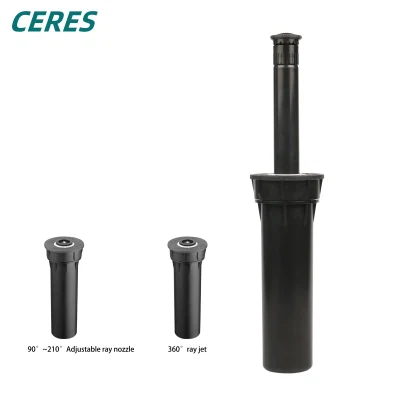

pop up plastic rotating garden water sprinkler for green house irrigaiton
introducing our pop up rotor sprinkler, it is a must sprinkler for irrigation of green belt, flower bed, lawn, etcThis durable plastic rotor sprinkler The plastic parts are made of high-strength anti-aging engineeringolastics such as ABS and POM, and the lifting springs are made of stainless steel springs, The dirt on thelifting column can bequickly and automatically cleaned, which can adapt to the harsh field conditions and ensure the reliableoperation
of the nozzle; A filter net is installed inside the lifting column to prevent the nozzle from being clogged, andthe nozzle and the filter net are convenient to be replaced; A filter net is installed inside the lifting column toprevent the nozzle from being clogged, and the nozzle and the filter net are convenient to be replaced; A/ariety of nozzle options, a variety of angle range options.The Rotor sprinkler is perfect tool for garden andlawn irrigation .
PRODUCTS ADVANTAGE
Sealing ring used by pop-up sprinkler is madefrom injection molding combined with chemicalmaterial and corrosion-resistant material. lt canbe stretched with water pressure, allowing morepop-up sprinkler to be installed in the same areaeven at low flow and pressure to reduce the cost,and can prevent ground dirt from entering the sealring and clogging the nozzle when the liftingcolumn is recovered.
Pop-up sprinkler adopts an upgradedspring which is solid enough allowing itto stretch under any circumstance.
The check valve used by pop-up sprinklercan avoid the water leakage and hydropsof low-lying pop-up sprinkler, prevent thewithered vegetation caused by long-termhydrops, and save water resources at the same time.
Considering the worst condition including treadrolling with heavy machinery, we adopt highlysolid pop-up sprinkler body, furthermore, in orderto make the top of pop-up sprinkler can undertakethe heavy pressure, the sprinkler dead bodythread uses high tensile intensity design to keepthe pop-up sprinkler stretch tightly, and thenincrease the service life of the pop-up sprinkler
| RL300 Adjustable angle nozz le technical parameters | |||||
| pressure | Range | Flow | Sprnkler intensity | ||
| Bar | Kpa | m | m/hr | mm/hr | |
| 90 | 1.7 | 170 | 7.6 | 0.18 | 11~13 |
| 2 | 200 | 8.2 | 0.19 | 10~11 | |
| 2.5 | 250 | 8.5 | 021 | 10 ~12 | |
| 2.8 | 280 | 9.1 | 022 | 09 ~11 | |
| 3.0 | 300 | 9.1 | 022 | 10~11 | |
| 3.5 | 350 | 9.1 | 024 | 11~12 | |
| 3.8 | 380 | 9.1 | 025 | 11~13 | |
| 1800 | 1.7 | 170 | 7.6 | 0.34 | 11~13 |
| 2.0 | 200 | 8.2 | 0.37 | 10 ~12 | |
| 2.5 | 250 | 8.5 | 042 | 11~12 | |
| 2.8 | 280 | 9.1 | 0.43 | 10~11 | |
| 3.0 | 300 | 9.1 | 045 | 10 ~12 | |
| 3.5 | 350 | 9.1 | 049 | 11~13 | |
| 3.8 | 380 | 9.1 | 0.47 | 12~13 | |
| 1.7 | 170 | 7.6 | 0.40 | 11~13 | |
| 2.0 | 200 | 8.2 | 043 | 10 ~12 | |
| 2.5 | 250 | 8.5 | 0.48 | 11~12 | |
| 210° | 2.8 | 280 | 9.1 | 0.50 | 10~11 |
| 3.0 | 300 | 9.1 | 0.52 | 10~12 | |
| 3.5 | 350 | 9.1 | 0.56 | 11~13 | |
| 3 8 | 380 | 9.1 | 0.58 | 12 ~13 | |
Our company is a professional facility agriculture and water-saving irrigation installation and design company for more then10 years. Our team has 2 chief engineers, 6 engineers, 6 projectmanagers, and 12 techniciansUndertake all kinds of irrigation,water and fertilizer integration smart digital agriculture,agricultural Internet of Things project engineering design andconstruction. And We have4000 square meters of qualityinspection workshop.we have strong supplier internet and strongTechnical Support For our customersWe Provide one-stoppackaging service for projects, welcome to call.
