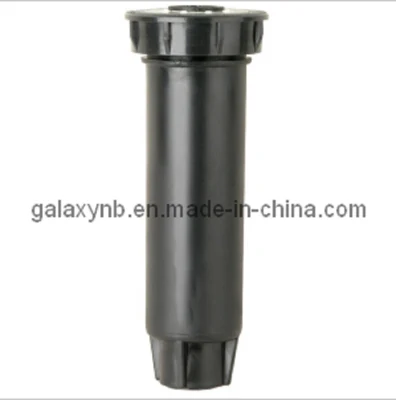

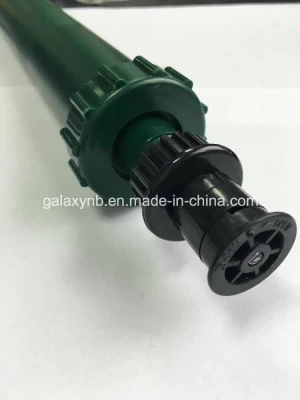

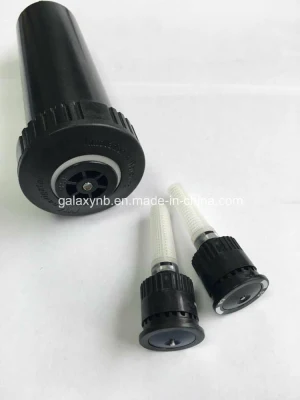

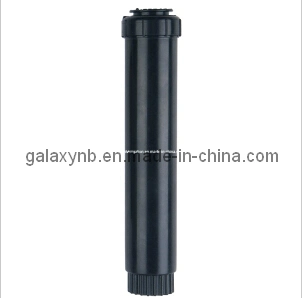

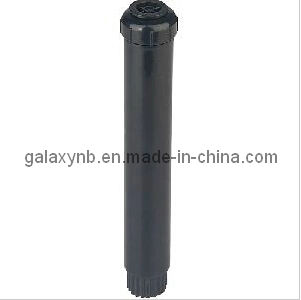

Multiple Models Adjustable Plastic Pop-up Sprinkler

Technical parameters of ray fixed angle nozzle
Degrees	Pressure	Range	Flux
	bar	m	m³/h
90	2	7.2	0.32
	2.5	7.9	0.38
	3	8.2	0.42
	3.5	8.3	0.5
	4	8.4	0.6
180	2	7	0.45
	2.5	7.5	0.5
	3	7.9	0.55
	3.5	8	0.63
	4	8.2	0.75
270	2	7	0.52
	2.5	7.5	0.58
	3	7.9	0.66
	3.5	8	0.76
	4	8.2	0.9
360	2	6.8	0.72
	2.5	7	0.82
	3	7.5	0.92
	3.5	7.8	1
	4	8	1.15

Anti aging sealing design
The sealing ring used for the nozzle is injection molded from chemical and corrosion-resistant materials. It can expand and contract with changes in water pressure, even under low flow and pressure, more nozzles can be installed in the same area, reducing costs, and preventing surface dirt from entering the sealing ring and blocking the nozzle during the recovery of the lifting column.

High strength spring
The upgraded spring used for the nozzle. It is very sturdy, allowing it to stretch and retract freely in any situation.

Overflow valve
The overflow valve used by the nozzle can prevent leakage and accumulation of water in lower terrain, prevent vegetation from withering due to long-term accumulation of water, and also save water resources

The strongest nozzle body
Considering the harshest environment, including trampling and heavy machinery crushing, the nozzle adopts a high-strength nozzle and a very sturdy and durable nozzle body. In order to ensure that the top of the nozzle can withstand heavy pressure, the threads of the nozzle body are designed with high-strength tensile force, maintaining a tight connection between the overall structure of the nozzle and greatly increasing its service life.
