Product Description
This vehicle is a new generation road sprinkle water by Godwin. It is mainly suitable for mechanized cleaning and sweeping operations in city streets, municipal squares, and large factories and mines. The truck has high operating efficiency, advanced and reliable technical performance, a beautiful appearance, and distinctive Godwin brand characteristics.
| Model | G20 | Curb weight | 1970kg |
| Dimensions | 4450*1460*2150mm | Walking speed | ≥28Km/h |
| Car size | 2600*1400*1350mm | Recharge mileage | ≤60Km |
| Tank volume | 1800L | ||
| Front track | 1250mm | Max. lift | ≤30m |
| Rear track | 1250mm | Max. working pressure | 250KGS |
| Wheelbase | 2100mm(±10) | Min. turning radius | 5000mm |
| Ground clearance | 190mm | Max. grade | ≤15° |
| Max. working flow | 30L/min | Rotation angle(fan) | 120° round trip(automatic) |
| Frame | Riveted frame | Tire | 175-70-13 (Chao yang) |
| Electronic control | 72V400A AC Controller / Optional | ||
| Battery | 72V200Ah lead-acid maintenance-free battery / Optional | ||
| Motor | 72V7500W AC motor | ||
| Charger | Smart charger (The battery model determines the charger model) | ||
| Charging time | 8-10 hours Temperature affects charging time | ||
| Cab | Enclosed frame steel cab, glass doors, wipers, electronic display instrumentation, radio, adjustable seats, fifire extinguisher, reversing camera, electric fan. | ||
| Seat | Leather Upholstered Seats, Leather Cushions | ||
| Rearview mirror | Large fifield of view without dead angle rearview mirror | ||
| Lights and Signals | Dual headlights + turn signals + brake lights + overall rear tail lights + reversing voice prompt | ||
| Car | Steel plate bending and welding, built-in plastic water tank | ||
| Power configuration | 390 Honda electric start gasoline engine | ||
| Steering method | Electric Power Worm Steering Gear | ||
| Braking System | Front and rear independent dual pipelines, vacuum-assisted hydraulic drum automatic brake system, auxiliary manual mechanical handbrake parking | ||
| Front suspension | Load-bearing steering front axle, axle tube thickness 5mm, diameter 60mm, hydraulic drum brake, 220mm large diameter brake drum, spring steel plate with hydraulic damper for shock absorption | ||
| Rear suspension | Load-bearing spring steel plate shock absorber system with hydraulic damper, the steel plate is 63mm wide, and a single piece is 8mm thick | ||
| Rear axle | Full suspension oil brake high and low speed integrated rear axle, no less than 250mm arge diameter split brake drum, no less than 30 thick half shaft, no less than 76mm half shaft axle tube thickness 5mm, hydraulic drum brake | ||
ADVANTAGE:

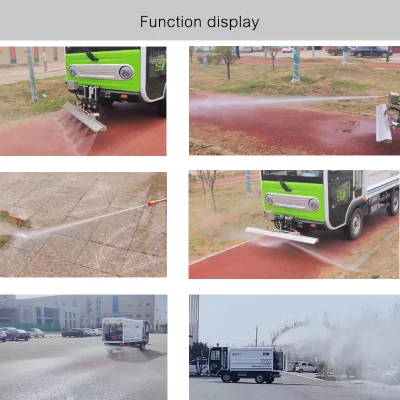

Equipped with spray disinfection device: Spray disinfection, longer retention time, and higher work efficiency.
Spray dust suppression: The top of the rear compartment is equipped with a high-pressure spray pipe, which can spray dust, cool down, and remove dust, which is efficient and convenient.
Rear sprinkler: Dust removal on the road makes it easier to clean the road.
High-pressure hedging: There are flushing nozzles on both sides of the body, the flushing direction can be adjusted arbitrarily, high-pressure hedging, strong pressure, and more effective dirt treatment.
2. The whole vehicle adopts automobile structure , drive, and control system, and the driving performance is comfortable;
3. Large water tank capacity , long sustainable operation time, high work efficiency;
4. The machine is equipped with a sprinkler Angle adjustable device, spray Angle adjustable device;
5. The high-pressure water gun equipped in the car can clean the dustbin and fruit bins;
6. Equipped with a multi-functional combination of the front high-pressure cleaning devices, to meet customers' various cleaning needs
7. Equipped with cleaning trolley and high-pressure washing site, easy to clean stubborn stains on the road.
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
1. Q: What's the brand of your truck?
A: Our brand is Godwin,our products cover all series such as tractor truck, tipper truck, garbage truck, water truck, cargo truck, and other special trucks.
2. Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, India, this help us better know have to handle with different certificates needed.
3. Q: How about warranty item?
A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.
4. Delivery time:
25 working days after payment is received.
