1.5"50m Big Rain Gun 360 Gear Drive Impact Sprinkler for Agricultural Irrigation

Get the 1.5" 50m Big Rain Gun 360 Gear Drive Impact Sprinkler for your agricultural irrigation needs. We are a factory specializing in high-quality sprinkler products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Product Details
  • Product Application
  • Company Profile
  • Our Service
  • FAQ
Overview

Basic Info.

Model NO.
2 inch
Application
Irrigation
Working Pressure
0.2-0.5MPa
Transport Package
Wooden Case
Specification
Cast iron
Trademark
OEM
Origin
China
Production Capacity
5000000PCS /Month

Product Description

          1.5"50m big Rain Gun 360 Gear Drive Impact Sprinkler For Agricultural Irrigation

1.5"50m Big Rain Gun 360 Gear Drive Impact Sprinkler for Agricultural Irrigation


  Reasonable agricultural water cannon rain gun sprinkler used big gun sprinklers and uniformity, avoid surface runoff and deep leakage losses, so that the utilization rate of water is greatly improved, generally than ground irrigation water saving 30 to 50%, saving water also means saving power, reduce the cost of irrigation. Reasonable agricultural water cannon rain gun sprinkler used big gun sprinklers .
Because of the elimination of the drainage ditches in the field, not only beneficial to mechanical operations, but also greatly reduced the amount of manual labor. Sprinkler irrigation can also be combined with the application of chemical fertilizers and pesticides, and can save a lot of labor. According to statistics, the labor required by sprinkler irrigation is only l/5 of surface irrigation.




Product Parameters

1.5"50m Big Rain Gun 360 Gear Drive Impact Sprinkler for Agricultural Irrigation


Specifications
Inlet diameter
Nozzle diameter
Pressure
Flow
Range
WL50
50mm
14-30mm
2-8bar
21-107.9 m³/h
19-53 mm

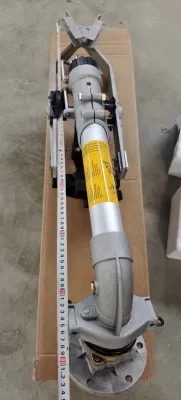

Product Details

1.5"50m Big Rain Gun 360 Gear Drive Impact Sprinkler for Agricultural Irrigation

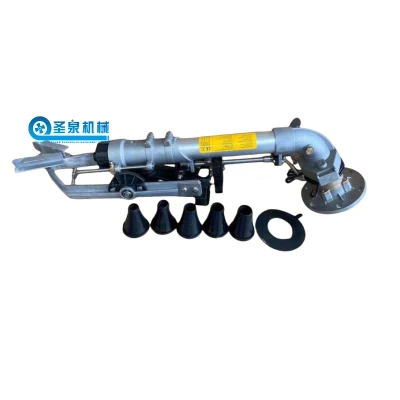

Main and auxiliary nozzles
The water jet of the main nozzle disperses the water column, and the sub-nozzle turbine adjusts the water column to spray evenly
1.5"50m Big Rain Gun 360 Gear Drive Impact Sprinkler for Agricultural Irrigation
Turbine power design
Turbine rotation, large power, better and more evenly disperse sprayed water, improve tomization effect, and do not hurt the crops
1.5"50m Big Rain Gun 360 Gear Drive Impact Sprinkler for Agricultural Irrigation
Water needle adjustment
Turn the wing nut and adjust the front water needle to make the spray more dispersed and atomized better
1.5"50m Big Rain Gun 360 Gear Drive Impact Sprinkler for Agricultural Irrigation
Thickened copper core
Thickened copper core, corrosion resistance, high strength, not easy to deform, good stability, longer use

1.5"50m Big Rain Gun 360 Gear Drive Impact Sprinkler for Agricultural Irrigation
Stainless steel converter
The black circlip controls the angle, push up to rotate 360 degrees, pull down to control the angle of rotation

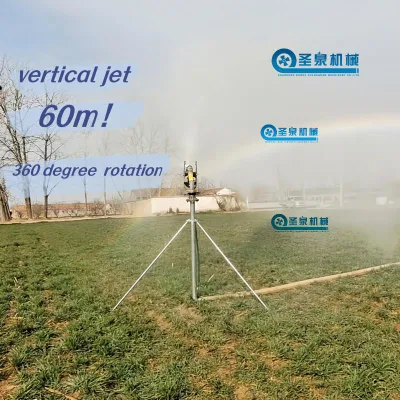

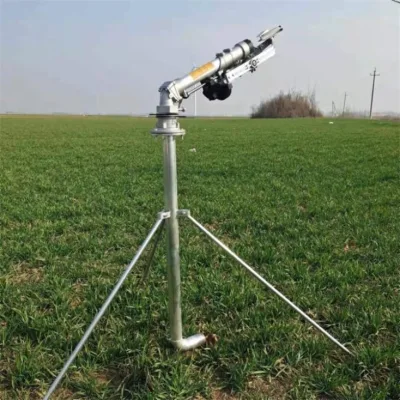

Product Application

1.5"50m Big Rain Gun 360 Gear Drive Impact Sprinkler for Agricultural Irrigation
The  Long range 26-53 m 360 degree rotation Garden sprinkler Farm irrigation spray gun rain gun sprinkler has a significant water saving effect without causing the loss of water, soil and fertilizer, which is conducive to the growth of crops, and promotes the development of agricultural production towards mechanization and industrialization. Simple operation, suitable for a variety of scenarios, large and small nozzles work together to spray evenly at the same distance, mainly used for large-scale gardening and industrial dust removal in farms, orchards, forestry, seedlings, etc.
