Nylon Net Filter Sg0504700, 5um, 47mm Dia., Used in Automotive Cleanliness Analysis

Buy high-quality Nylon Net Filters SG0504700 for automotive cleanliness analysis. 5um, 47mm Dia. Factory direct. Fast shipping. Order now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • FAQ
Overview

Basic Info.

Model NO.
SG-NF-43
Color
Natural White
Supplied in The Form of
Circle and Sheet
Diameter
25, 47, 55, 90 mm
Pore Size
5, 8, 10, 20, 25, 30, 41, 53, 60, 70, 100, 180um
Temperature
up to 100c
Package
100PCS/Pkg
Used in
Automotive Industry for Cleanliness Analysis
Transport Package
PE Bags and Standard Export Cartons
Specification
Nylon Monofilament Mesh
Trademark
SHARE FILTERS
Origin
Zhejiang, China
HS Code
59112000
Production Capacity
300, 000 PCS/Day

Product Description

Product Description

SHARE provides a broad range of nylon woven mesh filters, characterized by precise mesh openings, open area and mesh thickness.

Mesh Opening: The distance between adjacent threads
Open Area: The ratio (%) of the open area to the thread area within a woven mesh
Mesh Thickness: The average thickness of the woven mesh

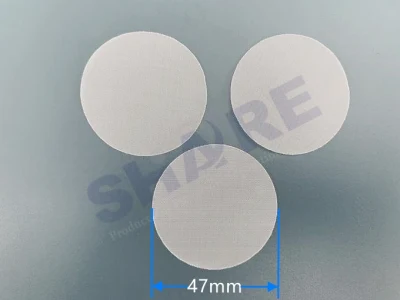

SHARE 5um nylon mesh filters(SG0504700) are commonly used for automotive cleanliness analysis.

Nylon Net Filter Sg0504700, 5um, 47mm Dia., Used in Automotive Cleanliness Analysis

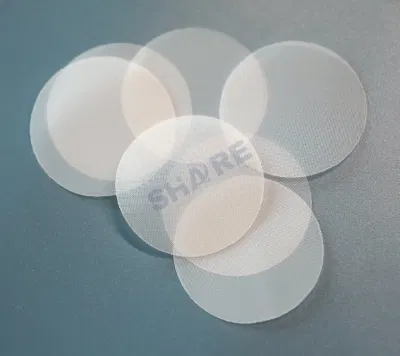

SHARE Nylon Net Filters
  • Characterized by precise mesh openings, open area, and mesh thickness
  • Good abrasion resistance and low coefficient of friction
  • Hydrophilic
  • Good resistance against strong alkalis, organics and corrosives
  • Compatible with a broad range of solvents
  • High strength and durability
  • Working temperature up to 115ºC
  • Resistant against pH 3 to 14
  • Mesh openings ranging from 5 to 1000 µm
  • Various micron ratings and diameters can be tailored on demand
  • Applications: particle removal and clarification; solvent filtration; particle analysis; paint monitoring; automotive cleanliness analysis


Product Parameters


  Mesh Opening(um) Open Area(%) Thickness(um) Disc Diameter(mm) Sheet(cm)
Nylon Mesh Woven Filters
for Cleanliness Analysis
5 2 100 25mm, 47mm, 55mm, 90mm 30cm*30cm or custom size
8 1 75
10 2 45
20 14 55
25 16 55
30 21 64
41 33 60
53 36 60
60 45 55
70 36 70
100 47 78
200 55 125
300 50 200
600 51 445
710 45 350
1000 58 1350

Nylon Net Filter Sg0504700, 5um, 47mm Dia., Used in Automotive Cleanliness AnalysisNylon Net Filter Sg0504700, 5um, 47mm Dia., Used in Automotive Cleanliness AnalysisNylon Net Filter Sg0504700, 5um, 47mm Dia., Used in Automotive Cleanliness Analysis

Nylon Net Filter Sg0504700, 5um, 47mm Dia., Used in Automotive Cleanliness Analysis
Your Benefits

Wide Range of Materials and Pore Sizes Available
Supplied in The Form of Rolls, Pieces, Shapes, Ribbons, Tubes, Molded Products
Precision Unifom Mesh Opening
Smooth Surface
Custom Cutting Service, Tight Tolerances
Unlimited Shapes, Clean Sealed Edges
Free Samples
2 Days or Less Lead Time


SHARE application speciallists with decades of years experiences will help you select the best filter solution for your application. Contact us now to discuss how SHARE FILTERS can revolutionize your filtration needs.  Nylon Net Filter Sg0504700, 5um, 47mm Dia., Used in Automotive Cleanliness Analysis Nylon Net Filter Sg0504700, 5um, 47mm Dia., Used in Automotive Cleanliness Analysis

FAQ

1. Who are we?
Established in 1983, SHARE offers a comprehensive range of industrial filter fabrics from 3 microns to 4000 microns openings: nylon filter mesh, polyester filter mesh, polypropylene filter mesh, polyethylene filter mesh, metallic filter mesh, PPS, PTFE, PEEK, etc., and we convert filter fabrics to fabricated filters and injection molded filters.

Our products and solutions for filtration, separation and sifting are applied to a wide range of industries, such as home appliances, automotive, irrigation, medical and healthcare, food and beverage, milling, electronics, aerospace etc.

2. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

3. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.


4. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

5. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

6. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.


7. What kind of payment terms do you accept?
T/T and LC and more.
